Group
C

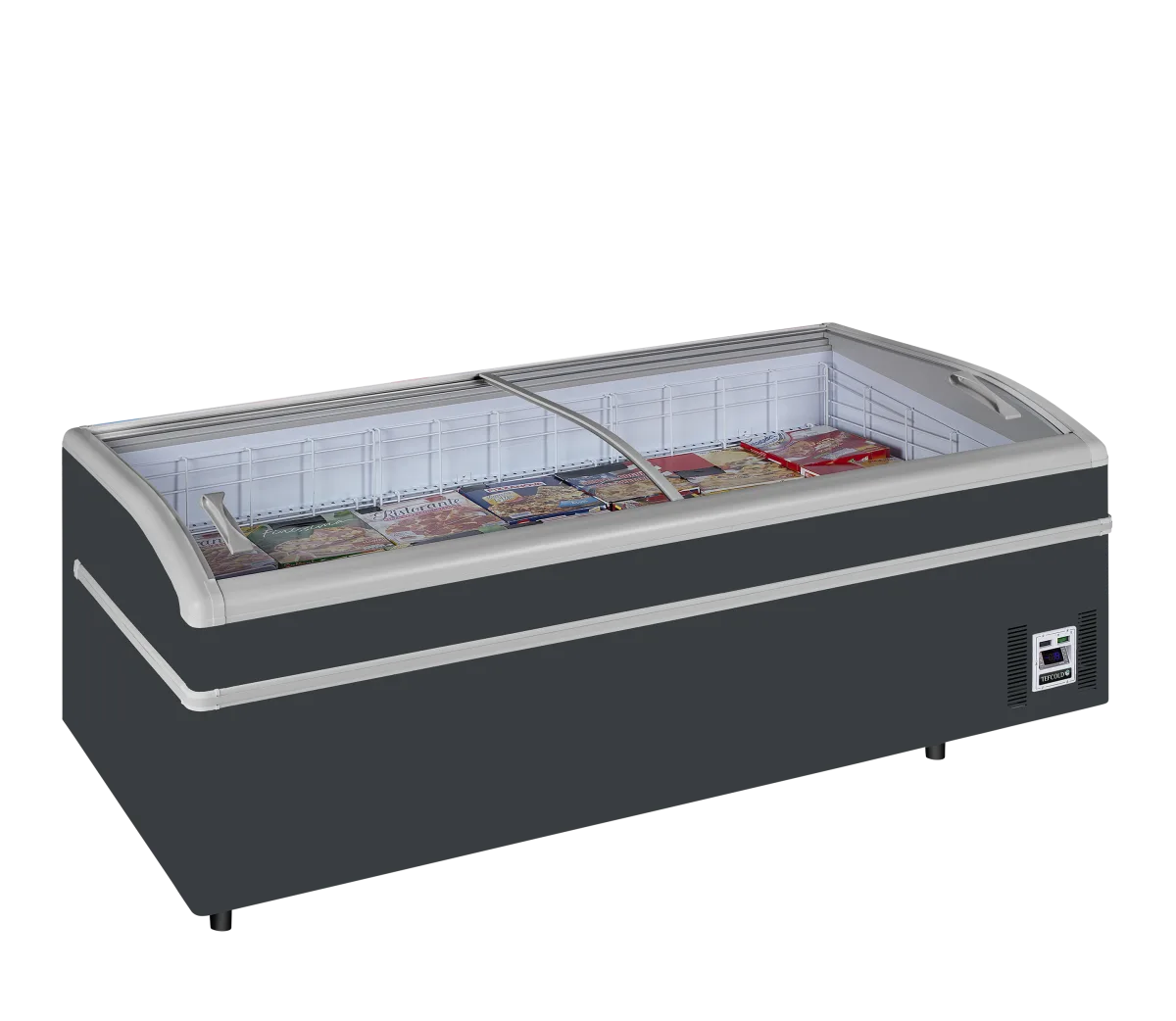

SUPER 220DE RAL7016
High Vision Supermarket Freezer
Item no. 33553
EAN 5708181993498
- Curved sliding lids
- Static cooling
- Automatic defrost
- Dual temp options available
- LED interior light with switch
- Digital controller and temperature display
- Low maintenance condensor
- Bumper bars

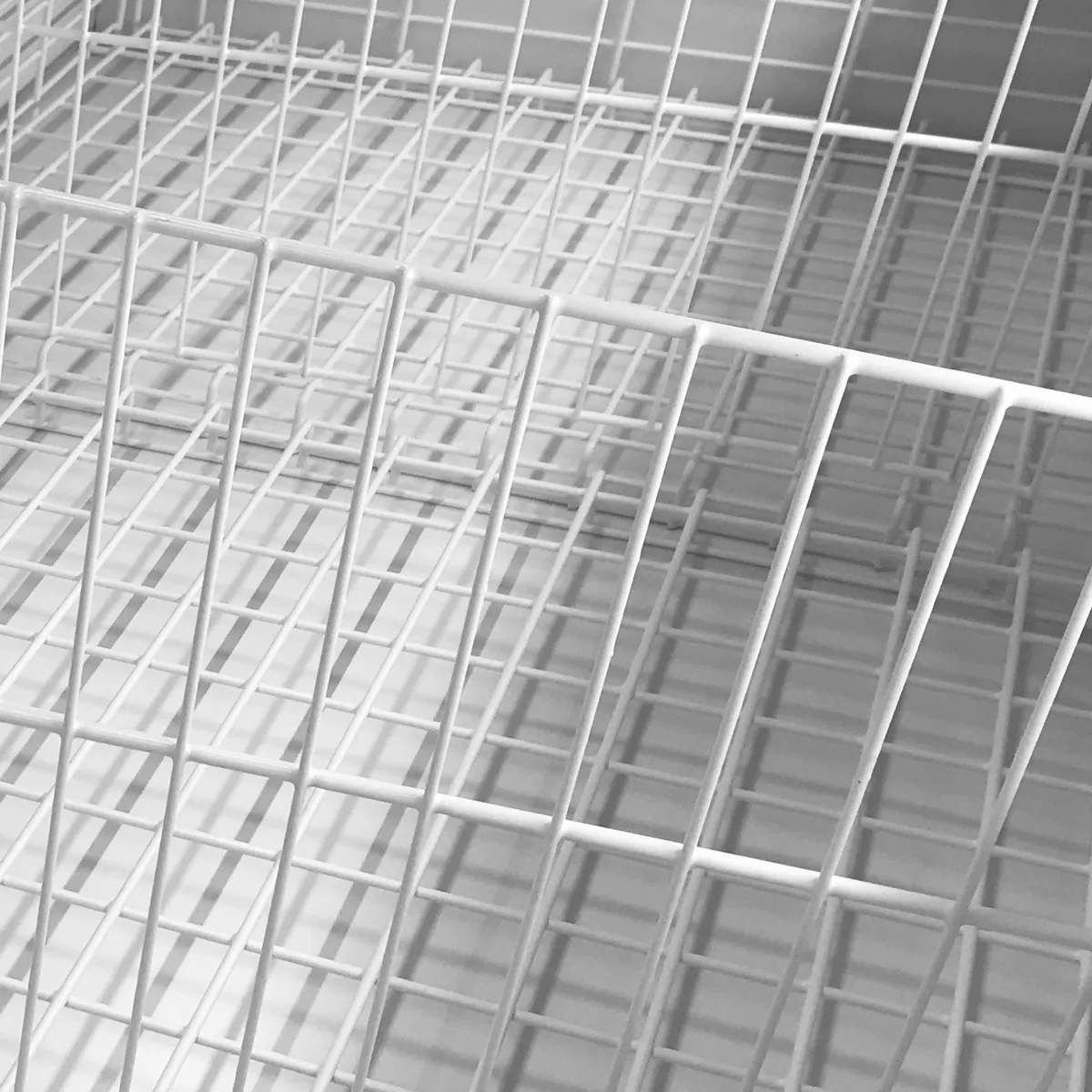

- 2 Dividers supplied as standard

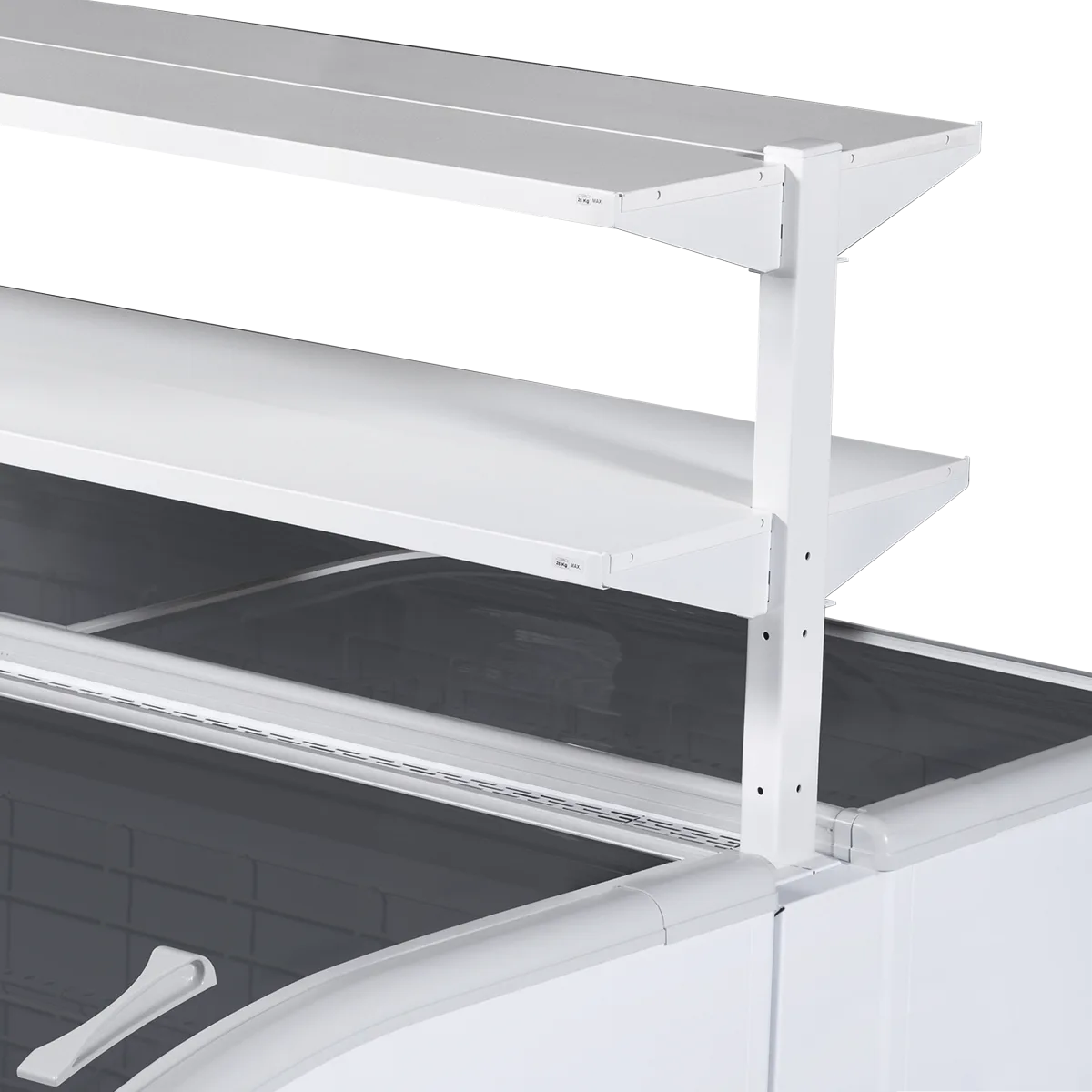

- Multiplexable,shelving kit options
- EPOS ticket strip option
- Defrost drain
Ordering several units or fitting out a full site? Ask for a volume quote.
Dimensions (W x D x H)2220 x 920 x 790 mm
Volume gross / net870 / 630 l l
Temperature-24 to -18 °C
Weight gross / net190 / 135 kg kg
Energy classC
Specifications
| Gross / Net Weight | 190 / 135 kg |
|---|---|
| 40ft Container Load | 16 pcs |
| GTIN / EAN | 5708181993498 |
| Product Group - Delivery services | Group 3 |
| Gross / Net Volume | 870 / 630 l |
| Total Display Area | 1.42 m² |
| Temperature Range | -24 to -18 °C |
| Climate Class | 3 |
| Exterior Finish | Anthracite RAL7016 |
| Interior Finish | White |
| Feet / Legs | 4 adjustable legs |
| Interior Light | LED |
| Type of Controller | Electronic |
| Type of Cooling | Static |
| Type of Defrost | Automatic |
| Refrigerant | R290 |
| Refrigerant Charge | 2 x 60 g |
| Thermometer | Yes |
| Energy Class | C |
| Max Ambient | +25°C, 60% RH |
| Energy Consumption | 7.05 kWh/24h |
| Annual Energy Consumption | 2573 kWh/year |
| EEI | 33 % |
| Power | 13 Amp |
| Input Power | 662 W |
| Voltage / Frequency | 220-240/50 V/Hz |
| Noise Level | 48 dB(A) |
| External Dimension (WxDxH) | 2220 x 920 x 790 mm |
| Internal Dimension (WxDxH) | 2062 x 774 x 490 mm |
| Packed Dimension (WxDxH) | 2310 x 1020 x 850 mm |
| Lid Number & Type | 2 curved sliding temp. glass lids |
| Number of dividers | 2 pcs |
The Arcaboa Super range of freezers is perfect for supermarkets and convenience stores. These units feature large panoramic glass lids and LED lighting to provide an excellent display of products. They can be arranged into islands with head case units (Super 200HCDE) on the ends, and multiplex kits are available to join them together. For added sales potential, shelving kits can be added. The cabinet has an auto defrost function to reduce maintenance costs and prevent ice formation. With very low energy consumption, this freezer is one of the most efficient on the market.
